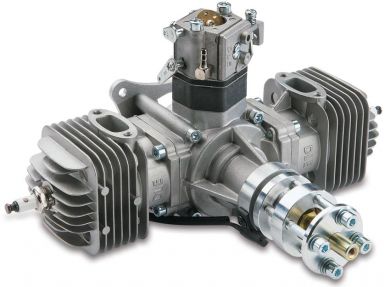

DLE 60cc gasoline engine DLE60

Free Shipping within Australia

Smooth operator.

Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin! The DLE-60 Twin gasoline engine also offers strong horsepower and an excellent power-to-weight ratio, keeping weight low while producing all the muscle your bird requires.

  • Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
  • Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.
  • Includes two high-quality Pitts style mufflers, beveled to reduce installation work by avoiding need to cut into cowl, thus also preserving scale lines and aerodynamics.

Specifications:
Stock Number: DLEG0060
Displacement: 61 cc (3.7 cu in)
Bore: 1.42 in (36 mm)
Stroke: 1.18 in (30 mm)
Total Weight: 4.37 lb (1.98 kg)
RPM Range: 1,400-8,500
Output: 7.0 hp @ 8,500 rpm

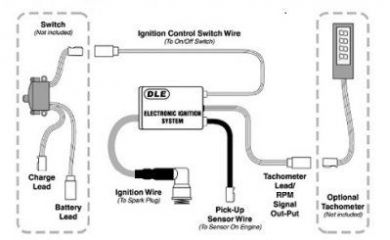

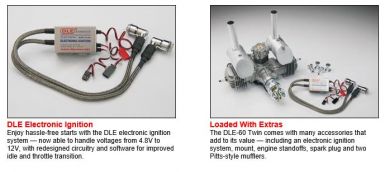

Includes: Electronic ignition, 2 mufflers, 2 spark plugs, mount & engine standoffs
Requires: Unleaded gasoline, oil, ignition battery & propeller

Technical Data:
Ignition Battery: 4.8V-12V
Compression Ratio:
7.6:1
Gasoline/Oil Mix:
30:1
Replacement Spark Plug:
DLEG6026
Weight Breakdown:
Engine: 54.85 oz (1555 g); Muffler 1: 2.82 oz (80 g); Muffler 2: 3.0 oz (85 g); Ignition: 7.44 oz (211 g)



Recommended Products:
HCAM6426 Hobbico LiFeSource 6.6V 1800mAh 10C LiFe Receiver Pack
XOAQ2210 Xoar 22x10 Beechwood Prop

Recommended Options:
FPWM0290 FlightPower 5A Voltage Regulator (if a LiPo or LiFe pack is used.)
DLEQ0551 DLE Propeller Drill Guide DLE-55
DLEG9205 DLE Gas Engine Kill Switch v2.0
DLEG5525 DLE Onboard Digital Tachometer
XOAQ2310 Xoar 23x10 Beechwood Propeller



Product Code: DLE60
