HITEC HS-322HD HS322 Servo Karbonite
This is a Hitec servo that will work with all modern radio systems
including Futaba J, Hitec, JR and Airtronics Z.
FEATURES: NEW Heavy-duty resin gear train
Nylon bushing
3-pole ferrite motor

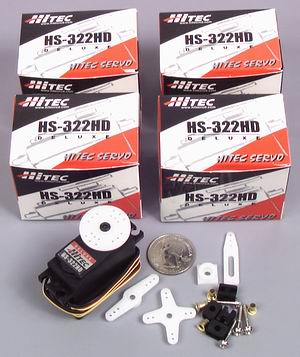

INCLUDES: One Deluxe Standard servo with nylon bushing.
One white small X-shaped servo horn.
One white adjustable servo horn.
One white off-set straight servo horn.
Four brass eyelets.
One white plastic wheel servo horn.
Four black rubber vibration isolators.
Four 2 x 14mm mounting screws.
REQUIRES: Universal S/JR/Airtronics Z
SPECS: Speed: 0.19 sec/60 degrees at 4.8V
Speed: 0.15 sec/60 degrees at 6.0V
Torque: 42.00 oz-in at 4.8V
Torque: 51.00 oz-in at 6.0V
Length: 1.60" (41mm)
Width: 0.80" (20mm)
Height: 1.40" (37mm)
Weight: 1.5oz (43g)
