Product Information

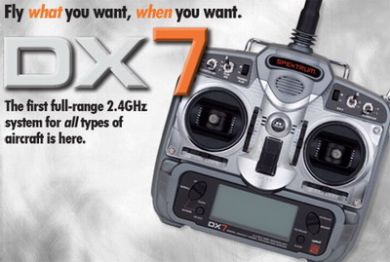

Spektrum DX7 - Full range DSM2 transmitter System - For airplane and helicopter
Part # SPM7700
Note Mode 2 sets currently unavailable
Spektrum DX7 - Now you can fly anything with the security with the revolutionary DSM2 system.
Comes complete with
- 4 x DS821 digital servos,
- AR7000 rx
- Nicad battery
- 240V charger
Note: The DX7 has been approved by the MAAA (MOP058) for use on Australian flying fields & the AMA for use in the USA.
Please specify Mode of Operation you Require at time of Purchase
- either Mode 1 or Mode 2
Spektrum DX7 Features
- 20-Model memory
- Airplane and Heli software
- Switch assignment
- P-mixes
- Includes 4 powerful DS821 digital servos with high-tech resin gears
- 3-axis dual rate & expo
- 3-position flap (Airplane)
- 5-point throttle curve (Heli)
- 3 flight modes plus hold (Heli)
- Gyro programming (Heli)
- CCPM, 2-servo 90°, 3-servo 90°, & 3-servo 120°
Spektrum DX7 Overview
With the DX7 you’ll be able to fly anything from micro electric helis, to big gas-powered IMAC planes without regard to frequencies and free from fear of interference. Calling this kind of thing “revolutionary” just doesn’t cut it. It is nothing less than a quantum leap in RC technology that will change how you fly forever. Never again will the availability of a frequency pin dictate when you can take off. Never again will you have to ask, “What channel are you on?” Never again will your flying experience be interrupted by model-generated RF noise, interference from commercial broadcast towers, or anyone on another RC system.
Spektrum DX7 Technical Notes
Spektrum DX7 Transmitter:
- 7 Channel
- 20 model memory
- Aircraft and Heli programming
- 2.4 GHz DSM2 Full Spektrum System
- Fully Digital trims
- 1500 NiMh battery
Spektrum AR7000 Receiver:
- 7 Channels
- Features external and internal receiver
- DuaLink
- Model Match
- Servo Synchronization
DS821 Digital Servos
- Torque: 72 oz/in @ 4.8v, 88 oz/in @ 6.0v
- Speed: .19 sec/60deg @ 4.8v, .15 sec/60 deg @ 6.0v
- Size: 1.50"x.94"x1.47"
- Weight: 1.5 oz / 42g
- Ball-Bearing: Single
- Motor: Cored
- Equivalent to JRs DS589
DX7 Programming Features:
- System Mode
- Model Select
- Model Name
- Model Type Select
- Modulation Select
- Model Reset
- Trainer System Select
- Throttle Recovery
- Input Select (Switch Select-ability for Aux 2 and Gear)
- Wing Type
- Swashplate Type
- Dual Rate Switch Select
- Timer
DX7 Airplane Function Mode
- Dual Rates
- Exponential
- Servo Reverse
- Sub Trim
- Travel Adjust
- Elevator to Flap Mix
- Aileron to Rudder Mix
- Flap System
- Differential
- Programmable Mix (1-6)
- Servo Monitor
- Timer
DX7 Helicopter Function Mode
- Dual Rates
- Exponential
- Servo Reverse
- Sub Trim
- Travel Adjust
- Swashplate Mix
- Throttle Curve (3) (5 pt mix)
- Pitch Curve (4) (5 pt mix)
- Revolution Mix
- Gyro Sensing
- Servo Monitor
- Timer
- P-Mix (3)
Spektrum DX7 Specifications
- # of Channels: 7
- Modulation: DSM2
- Band: 2.4 GHz
- 4 x Servos: DS821/DS589 Digital Servos
- Programming Features: Aircraft and Heli
- Model Memory: 20 Model Memory
What's Included
- Spektrum DX7 Transmitter with 1500mAh NiMH
- Spektrum AR7000 Receiver
- 4 x Servos: DS821/DS589 Digital Servos
- 4N1100 Rx battery pack
- 240V charger
