Product Information

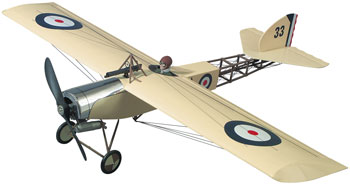

Top Flite Elder 40 Gold Edition Kit .40-.46,65"
Manufacturer Stock#
TOPA0215
Vintage looks with today's technology.
Dress it up for scale realisim with Williams Bros range of fine scale accesories sold seperately in our shop.
The Elder 40's legacy began in 1985, when it was first introduced by Top Flite. Modelers immediately took to this nostalgic-looking kit, and Elder 40s filled the skies at flying fields everywhere. Now Top Flite is bringing this classic back, with one major distinction: Gold Edition CAD engineering, for the most straightforward, most accurate assembly possible. The result is a scale replica of an aviation legend that's a joy to build, as well as a pleasure to fly!
An ideal second model — can be flight-ready in just a few weekends.
CAD-engineered, all-wood parts interlock precisely to produce a strong, straight structure; photo-illustrated instructions guide you through the building process step-by-step.
Features assembly aids such as pre-shaped leading and trailing edges and built-up wing tips.
The radio compartment with servo tray offers plenty of room for simple installation of a 4-channel system.
Handles as easily as any sport plane, with "wind in the wires" excitement.
This is the Radio Controlled, Glow Powered, Balsa and Plywood
Top Flite Gold Edition Elder .40 Sport Scale Aerobatic Airplane Kit.
For Intermediate to Advanced Modeler/Fliers.
The Elder 40's Legacy began in 1985, when it was first introduced by Top Flite.
FEATURES: Top Flite is bringing back the Classic Elder 40, with one major
distinction: Gold Edition CAD engineering.
An Ideal Second model, can be flight ready in just a few weekends.
Features assembly aids such as pre-shaped leading and trailing
edges and built-up wing tips.
Wings are one-piece, all wood with ailerons and plywood wing joiners.
Spacious radio compartment allow easy radio gear installation and
quick fuel tank access.
Open rear section of the fuselage, with its trusswork and gussets,
further exemplifies the planes vintage heritage.
Pre-formed, .12" (3mm) 2-piece wire landing gear provides excellent
ground handling
Wooden parts are included for creating the flying wire braces shown
on the box, used for attaching either elastic cord (not included)
or for added realism, metal wire with miniature turnbuckles.
Warranty: Top Flite Model Manufacturing Company guarantees this
kit free from defects in both materials and workmanship at
the date of purchase.
INCLUDES: One Glow Powered Top Flite Gold Edition Elder .40 Sport Scale Kit
with all wood to construct the airplane, pushrods, .12" (3mm)
prebent wire landing gear, thin wire to wrap landing gear, nylon
adjustable engine mount, hardware package, decals, photo-
illustrated instructions, full-size rolled plans.
REQUIRES: Engine: .40-.46 (6.5-7.5cc) (2-stroke)
OR .52 (8.5cc)(4-stroke)
Muffler: Engine mounts inverted, if using 4-stroke, stock muffler
of engine will work fine.
Radio: 4-Channel
Servos: 4- 40 oz-in torque minimum (1-aileron, 1-elevator, 1-rudder,
1-throttle)
Servo Extension 6" (152mm) for ailerons
Covering: Four 6' rolls of MonoKote
Misc. Items: 10oz fuel tank, glow plug, ¼" foam rubber padding
3' medium fuel tubing, fuel filter, propeller depending on
selected engine, building hardware field equipment.
SPECS: Wingspan: 65" (1651mm)
Wing Area: 778sq in (50dm2)
Weight: 5.5-7.0lb (2495-3175kg)
Wing Loading: 16.3 - 20.7oz/sq ft (50-63g/dm2)
Length: 49.5" (1257mm)
Airfoil: Flat bottom
Center of Gravity: 3½" (89mm) Back from the wing's leading edge
at the fuselage sides.
Control Throws- Low Rate High Rate
Ailerons: Up & Down ¼" (6mm) 3/8" (9.5mm)
Elevator: Up & Down 7/16" (11mm) 5/8" (16mm)
Rudder: Right & Left ½" (13mm) ¾" (19mm)
Incidence-
Engine Down Thrust: 5°
Engine Right thrust: 2°
Wing: 0°
Stabilizer: 0°
