Product Information
Great Planes Edge 540 E-Performance Series EP 3D ARF
Manufacturer Stock#
GPMA1550
| The original appears only at air shows, but you can take this compact performer virtually anywhere. The bold, clean profile is ready for crowd appreciation and the performance is star-quality: strong, commanding and as varied as the pilots who fly it. From predictable sport aerobatics to startling 3D stunts, the Edge 540 can do it all. |
- Ready for first performances in as little as 4-6 hours.
- Sized right for compact cars, nearby parks and your favorite airfield.
- Built from light, laser-cut woods.
|
SPECIFICATIONS
- Stock Number: GPMA1550
- Wingspan: 41 in (1040 mm)
- Wing Area: 353 in² (22.9 dm²)
- Weight: 29-32 oz (820-910 g)
- Wing Loading: 11.8-13.1 oz/ft² (36-40 g/dm²)
- Fuselage Length:39.5 in (1005 mm)
- Requires: 4-channel radio w/4 micro servos, out-runner brushless motor, 35A brushless ESC (min) and 11.1V 1500mAh LiPo battery.
This is the electric powered, radio controlled, almost ready to fly ElectriFly Edge 540 3D Aerobatic Airplane.
This Edge 540 3D is part of the ElectriFly E-Performance Series.
**Additional Technical Info Will Be Added When It Becomes Available.**
FEATURES:

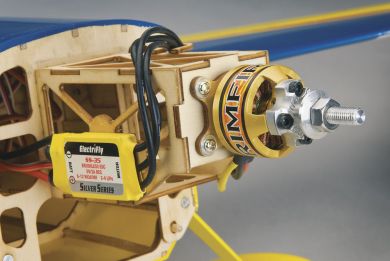

- Construction: Balsa and ply with prehinged ailerons and rudder and airfoiled control surfaces, motor box preinstalled with blind nuts providing perfect spacing for spinner backplate-no need for measuring, cowl ring also preinstalled
- Wings: Two piece with carbon fiber wing joiner and single screw attachment
- Covering: Top Flite MonoKote
- Aileron Control: Dual servo
- Cowl: Prepainted fiberglass, attaches with rare earth magnets
- Wheel Pants: Prepainted ABS
- Landing Gear: Aluminum
- Wheels: Main-two foam --" (--mm) diameter,
- Spinner:
- Hardware: Full set included
- Building Time: Approximately 4-6 hours
- Warranty: Great Planes Model Manufacturing Company guarantees this kit to be free from defects in both materials and workmanship at date of purchase.
INCLUDES:
ElectriFly ARF Edge 540 3D Aerobatic Airplane with fiberglass cowl, ABS wheel pants, landing gear, wheels, hardware and photo-illustrated instruction manual
REQUIRES:
- Radio: 4 channel
- Servos: 4-micro
- Motor: Rimfire 35-30-1250 outrunner, GPMG4595 35A ESC for Brushless Motors:
- Battery: LiPo 1500mAh 11.1V
- Cell Balancer: For LiPo battery, GPMM3160
- Battery Charger: LiPo compatible
- Propeller:
SPECS:
- Wingspan: 41" (1040mm)
- Wing Area: 353 sq in (22.9 sq dm)
- Weight: 29 - 32.0 oz (820 - 910g)
- Airfoil: Fully symmetrical, mid wing placement
- Wing Loading: 11.8 - 13.1 oz/sq ft (36 - 40 g/sq dm)
- Length: 39.5" (1005mm)
- Center of Gravity: " ( mm) back from the leading edge of the wing at the side of the fuselage
Control Throws- Low Rate High Rate 3D
Elevator:
Rudder:
Ailerons:
COMMENTS: Following are the MonoKote colors used on this model and stock numbers for six foot rolls;
