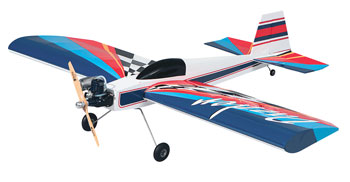

Great Planes Dazzler 40 Kit .32-.46,48"

Great Planes Dazzler 40 Kit .32-.46,48"

Product Information

Great Planes Dazzler 40 Kit .32-.46,48"

Manufacturer Stock#
GPMA0480

Great Planes Dazzler 40 Kit .32-.46,48" Wing Span
This a Great Planes Dazzler 40 build up Kit.

The Dazzler delivers unlimited fun on a limited budget
As a Sunday sport plane for practicing aerobatics, or for use in club "fun-fly" events, the Great Planes Dazzler can't be beat! This nimble model cuts costs—for example, it performs very well with an economical "bushing" .40 engine—but doesn't cut corners when it comes to flying excitement. For the impatient pilot, the Dazzler features a low number of lightweight, all-wood parts and straightforward construction that speeds assembly. Hatches in the fuselage provide convenient, easy access to the fuel tank and radio gear. And with its compact size, the Dazzler can easily be transported to the field in a small car in one piece.

Control surfaces are twice the normal size, for added maneuverability


Nearly symmetrical airfoil and oversized control surfaces provide amazing "snap" for rocketing rolls and other wild aerobatics


Dual aileron servos speed up response while also reducing flutter


Includes prebent, taildragger landing gear, photo-illustrated instructions and a "Dazzler" name decal for the wing


All of these great features, along with its low price, make the Dazzler the perfect choice for pilots wanting an all-wood plane for "low-risk" aerobatics.

KIT INCLUDES:
All die-cut plywood and balsa wood for construction, butyrate canopy, prebent main and tailgear wire, illustrated instructions, Dazzler- decal, pushrods and hardware package.


SPECS: Wing span: 48"
Wing area: 578 sq.in.
Length: 48"
Wing loading: 14-16oz/sq ft
Weight: 3.5-4lbs
Airfoil: Semi-Symmetrical Mid-Wing

This kit is not an ARF Model, this is a full build up kit, which requires the folling items to complete:
.32-.46 2-stroke or .40-.52 4-stroke Engine and propeller.
Engine Mount
Fuel Tank
Wheels
4 Channel Radio
5 Servos (2 servos for ailerons)
Y-Harness from receiver to aileron servos
Covering Material
Miscellaneous Hardware,
Building and Field Equipment.


Product Code: GREY21

In Stock

Quantity: Add to Basket
