Product Information

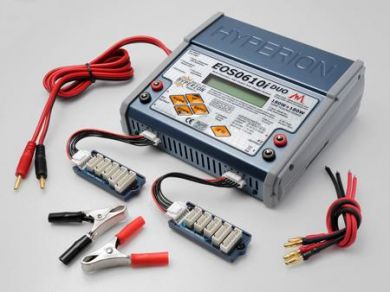

Hyperion EOS-0610iDUO Charger
This is the HYPERION HP-EOS0610iDUO-2 Charger.
The Hyperion EOS 0610i DUO 6S-6S 16N CHARGER, with Integrated LBA10A balancer- DUAL 180W Outputs with max 12S SYNC MODE New and improved with 50 x 50W discharger.
SUPER POWER, DUAL CONVENIENCE EOS 0610i DUO2 DC INPUT 11V~28V 6S Max, 180W 10A Max Charge Per Port , 50W+50W 10A Discharge.
SYNC Charge allows similar packs to charge as a single unit.
Specifications & Features:
•180W Per Port for 360 Watts Max CHARGE Output
•0.1A to 10.0A max CHARGE Current in 0.1A steps
•50W Per Port DISCHARGE with 10A Max Current
•STORE MODE allows fast and simple charge/discharge to 60% capacity for proper storage of Lithium Batteries = longer battery life.
•Charges/Discharges 1 to 6 cells Lithium Polymer Batteries Per Port (3.7V/cell nominal types)
•Charges/Discharges 1 to 6 cells Lithium Ion Batteries Per Port (3.6V/cell nominal types)
•Charges/Discharges 1 to 6 LiFePO4 (A123) cells (LiFePO4 3.3V/cell nominal, A123 3.3v support)
•Charges/Discharges/Cycles 1-16 cell NiCd/Ni-MH in three modes: Normal, Linear, and Automatic
•Charges/Discharges 1~12 cell Lead Acid Batteries (Pb, 2V/cell)
•Allows Lithium-Type batteries to 50,000mAh and PB (lead/acid) batteries to 100Ah capacity
•Two built -in Hyperion LBA10/300 Balancers with 10A max rating and 300mA max balance rate/cell
•TCS - Terminal Capacity Selection
•Rich Data Displays during and after charging and balancing
•PC Port for Data Logging and Firmware upgrades
•Temperature Sensor Ports & Temp Stop settings*
•Wide Voltage Input Range 11v~28v for higher efficiency when charging high-voltage packs, and compatibility with a wider selection of AC/DC power supplies
•Power Supply Amperage Control to allow reliable charging with lower-output power supplies
•Power Supply Voltage Control (PS Load Control) works in concert with Amperage control to insure the charger does not overload your power supply
•Adjustable Power Sharing % between Outputs
•Input Cable with 4mm Male Connectors + Clamps
•Output Cable Set Included, with 4mm Connectors
•Two, Integral, Thermostat-Controlled Cooling Fans
•Rugged Aluminum Case with Insulating End Caps
•2-Line, 16-Character, Yellow Backlit LCD Data Display. Highly visible in all conditions
•Total of 20 User-definable Memory Positions
•Firmware upgradable via Win PC **
* Temp sensors available separate: #HP-EOSTMPSEN or EOS1210i-SEN
** Firmware upgrades require USB Adapter #HP-TI-PRGUSB and harness #HP-EOS06-PCCBL. Firmware upgrades will only become available if and when improvements are identified in future.WARRANTY
HYPERION Chargers are guaranteed to be free from defects in materials and workmanship for a period of one calendar year from date of purchase. Your selling dealer is your first point of contact for warranty issues. Return postage costs are the responsibility of the user in all cases. Submit copy of original receipt with the return.
Damage due physical shock (dropping on the floor, etc), inappropriate power supply (automotive battery charger, etc!), water, moisture, and humidity are specifically NOT covered by warranty. It is well to carefully check your charger before making a return, as problems in setup, cabling, or power supply are much more common than defects in the charger.
