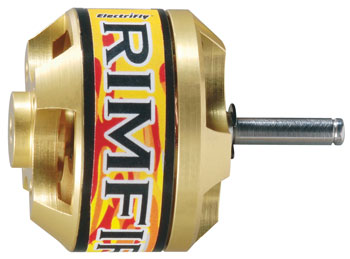

Great Planes Rimfire .10 35-30-1250 Outrunner Brushless Electric Motor

Product Information

Great Planes Rimfire .10 35-30-1250 Outrunner Brushless electric Motor

Manufacturer Stock#
GPMG4595

Great Planes ElectriFly RimFire
35-30-1250 Brushless Outrunner Electric Motor.

Suits the Great Planes Edge 540 E-Performance Series EP 3D ARF

ESC to suit

FEATURES: Designed for explosive acceleration and maximum torque eliminating
            the need for a gearbox
          Lightened aluminum can houses high torque rare earth Neodymium
            magnets
          Double shielded bearings
          Virtually maintenance-free; no commutators or brushes to wear out
          Two year quality guarantee

INCLUDES: Great Planes ElectriFly RimFire 35-30-1250 Brushless Outrunner
            Electric Motor
          Outrunner Motor Mount   GPMG1205
          Outrunner Prop Adapter GPMQ4903

REQUIRES: Brushless Motor-compatible Electronic Speed Control
          4mm Male Bullet to 3.5mm Female Bullet Adapter (GPMM3123) if using
            ElectriFly Brushless Speed Control
          Propeller: Depending on aircraft application

SPECS:    Aircraft Application:
          75-100 Watts Per Pound
            Trainer & Sport Performance Weight Range: 3.3-4.4lb
          100-150 Watts Per Pound
            Aerobatic & High Speed Performance Weight Range: 2.2-3.3lb
          Over 150 Watts Per Pound
            3D & Extreme Performance Weight Under 2.2lb

          Motor Diameter: 1.38"   (35mm)
          Motor Length:   1.18"   (30mm)
          Shaft Diameter: .16"    (4mm)
          Shaft Length:    .65" (16.5mm)
          Lead Length:       3"   (76mm)
          Connectors: Bullet type, .14" (3.5mm) diameter
          Max. Constant Current: 30A
          Max. Surge Current: 35A
          Max. Constant Watts: 333W
          Max. Surge Watts: 390W
          No Load Current: 1.2A
          Input Voltage: 11.1V
          RPM/V (kV Rating): 1250
          Weight: 2.5oz (71g)
          Suggested Propeller Size: 10x7E

COMMENTS: The three-number designation refers to Motor Diameter, Motor Length
            and kV Rating.
